Measuring capsule meter
M140 UPZ KOAX
Product categories
Water
Coaxial capsule meter system with optional M-Bus power supply
Water
Drinking Water
Mechanical
Wired
M-Bus
Smart Building
Your benefits
- Compact design:
Requires little installation space on site - Easy installation and replacement:
Cost savings per measuring point - Prepared for communication module:
Retrofitting guaranteed - Completely lead-free design
Applications
- Water consumption measurement in building services engineering
- Available for nominal flow rate Q3 2.5 m³/h
- Water meter for local or remote reading
- Flush mounting
- Also suitable for KOAX 2" shut-off sections
Options
- Kommunikationsmodul (TMP-F M-Bus) mit Speisung und 1 m Kabellänge
- Impuls, SO konform
- M-Bus nach EN 13757-2/-3, OMS konform - Wasserzähler-/Ventil-Block UP-Fix KOAX:
Dokumentation: UP-Fix KOAX 20-1 und 20-2 - EPe20601
Downloads
Properties
- Multi-jet capsule meter, dry runner MOF
- IST interface, flush-mounted housing
- Q3 2.5 with 2" connection thread
- No inlet or outlet section required
- Universal installation position
- The counter can be rotated to the desired display position at the installation site
- Maximum operating pressure PN 10 bar
- Temperature 30 °C or 90 °C
- Optimal integration into the sanitary fittings range in modern residential construction
- Easy flushing of the pipe before installing the measuring capsule with the aid of a blind flange
- Round, chrome-plated rosettes
- Completely lead-free design
- Can be used over several calibration periods
- Counter with inductive communication interface
- M-Bus according to EN 13757, OMS compliant
Konformität nach Europäischer Messmitteldirective (MID)
Product information
Dimension Diagram
Technical Data
| Meter type MOF-IST | |||
|---|---|---|---|
| Nominal diameter | DN | mm | 15 |
| Nominal pressure | PN | bar | 10 |
| Continuous flow rate | Q3 | m3/h | 2,5 |
| Overload flow rate | Q4 | m3/h | 3,125 |
| Transitional flow rate ±3% 1) | Q2 | l/h | 100 |
| Minimum flow rate ±5% | Q1 | l/h | 62,5 |
| Pressure loss at Q3 | bar | 0,45 | |
| Flow capacity at 1 bar pressure loss | m3/h | 3,3 | |
| Start-up | l/h | 8 | |
| Max. temperature | max.°C | 30/90 | |
| Measuring range | R40 | ||
| Protection class | IP54 | ||
| Magnetic protection | EN14154-3 | ||
1) Cold water range ±2%
Dimensions
| Meter type | MOF-IST | ||
|---|---|---|---|
| Width of measuring capsule | B | mm | 75 |
| Diameter of counter cover | D | mm | 64 |
| Height including UPT to pipe center | H1 | mm | 76 |
| Measuring capsule without thread | H2 | mm | 50 |
| Measuring capsule | H3 | mm | 65 |
| Weight | kg | 0,16 | |
| Communication module | TMP-F M-Bus | ||
|---|---|---|---|
| Protruding height | H | mm | 20 |
| Cable length including ferrules | L | m | 1,0 |
Installation note
UPZ KOAX capsule meters are splash-proof. Caution: These meters should not be used in areas with constantly high levels of condensation (e.g., directly in shower areas or earth shafts), as moisture can diffuse through the plastic meter cover over time and impair readability. Install in a frost-proof location!
Installation positions
| Pipe: | horizontal |  |
| vertical |  | |
| Meter head: | upwards |  |
| to the side |  |
TMP-F Communication Module M-Bus
| Module features | |
|---|---|
| Type | Combined M-Bus and pulse module |
| Protection class | IP 56 |
| Cable type | LiYY 4 x 0,25 |
| Battery | 3 V Lithium |
| Power supply | Via M-Bus for bus operation, via battery for pulse operat |
| Load M-Bus | 1 Load |
| Battery life | Typically 12 years at 25 °C |
| Data lines | Galvanically isolated |
| Sensing | Inductive with three coils |
| Color | Transparent |
| Ambient temperature | 0 to 55°C |
| Humidity (non-condensing) | 10% to 70% |
| M-Bus | |
|---|---|
| Protocol | M-Bus according to EN13757, OMS compliant |
| Transmission rate | 2400 baud, 300 and 9600 baud programmable |
| Secondary address | Programmed at the factory, corresponds to device number |
| Primary address | Programmable |
| Manufacturer identification | ELS |
| Wire color | white/brown; reverse polarity protected |
| Data for M-Bus readout: | ■ Current meter reading ■ Water meter serial number (if programmed) ■ M-Bus module serial number ■ 15 monthly values with date ■ 15 monthly average values with date ■ Key date value with date |
| Pulse | |
|---|---|
| Pulse values | 1, 5, 10, 25, 50, 100, 250, 500, or 1,000 l/pulse programmable |
| Pulse width | min. 62,5 ms |
| Load capacity | 30 V DC, max. 30 mA |
| Pulse type | Direct or balanced (programmable) |
| Wire | green/yellow; reverse polarity protected |

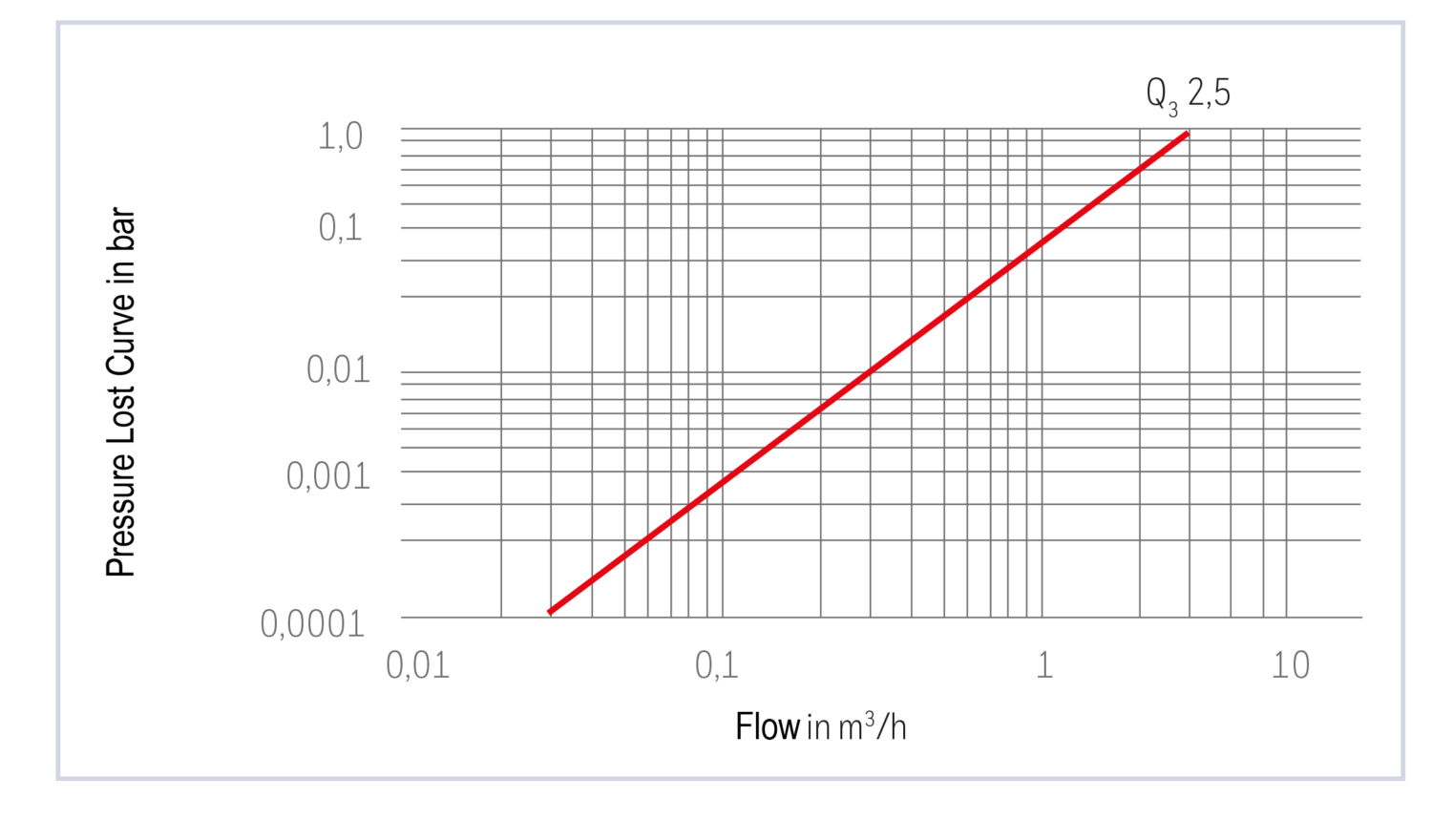

Pressure lost curve
Measuring insert
- Measuring capsule with 8-digit roller counter, rotatable through 360°, integrated dirt filter
- Flat gasket
- Plastic cylinder (chrome-plated)
- Plastic rosette (chrome-plated)
- Wire seal
- Installation instructions

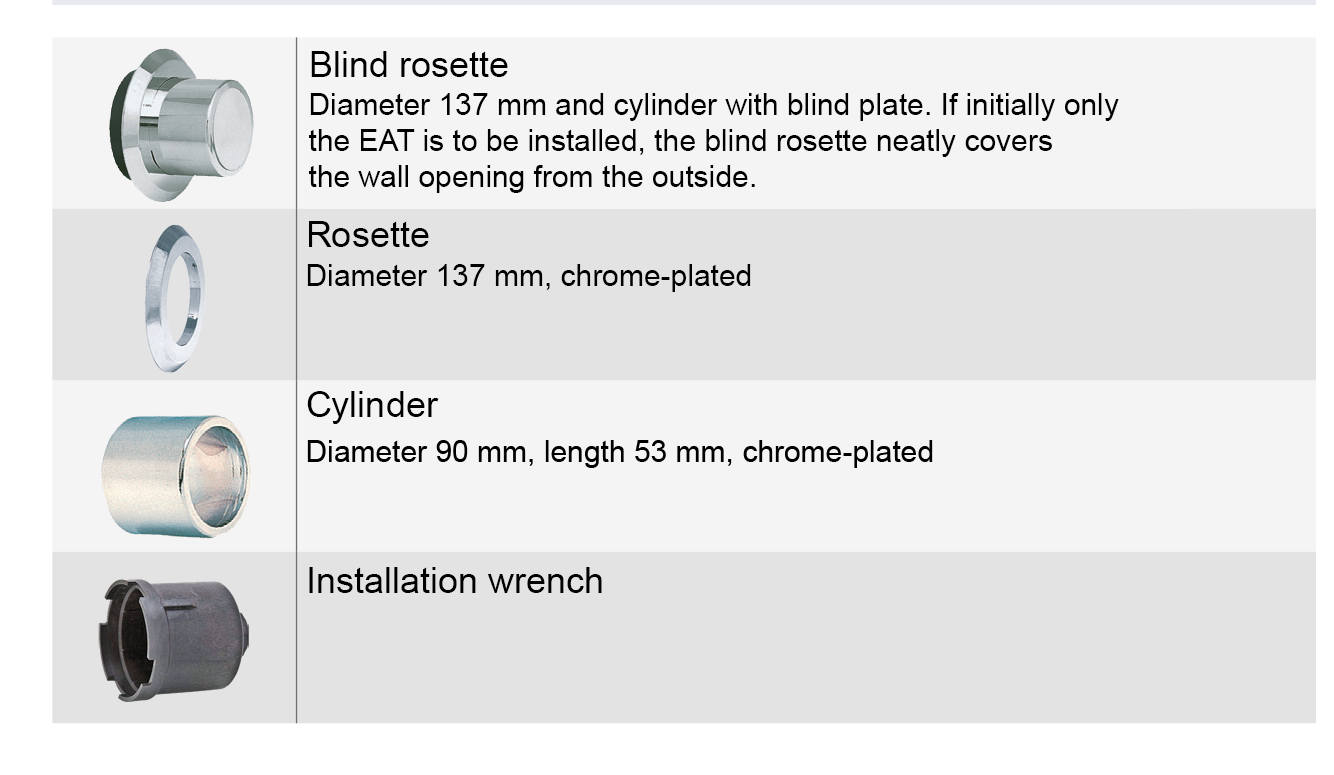

Accessories
