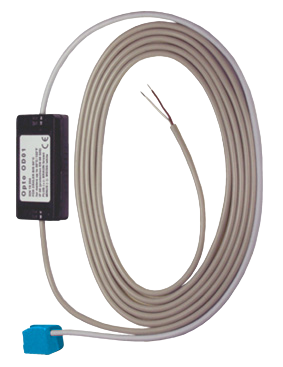

Opto-OD-Pulser for Woltman and bulk water meter
Water
Drinking Water
System technology
Wired
Impulse
Smart City
Your benefits
- Conversion of an impulse signal to a Namur signal (4 - 20 mA / 0 - 20 mA):
High resolution for instantaneous flow rate indication (m3/h) in combination with the FM-1D/K - Can be retrofitted without damaging the calibration seal:
Easy and fast on-site installation
Applications
- Flow direction recognition (forward or backflow) by means of different signal levels
- Pulse transferral for forward and backward totalisation in combination with FM-1D/K
- Pulse output for process measuring, control and dosing functions
Properties
- Two different pulse values available (OD 01 or OD 03)
- Flow direction detection
- Flood proof (IP68)
- Cable length 3 m
Product information
Technical Data
| Manufacturer information | |
|---|---|
| Control element | |
| IR reflex light barrier acc. EN 50227, plug type | |
| Specification | |
| Supply voltage | 8,2 V DC |
| Current pick-up with reflection | ‹ 1,2 mA |
| Current pick-up without reflection | › 2,1 mA |
| Integrated with the sensor, via an additional current level, is the forward and reverse characteristic 1,5 mA | |
| Pulse duration | |
| Depending upon flow rate in water meter | |
| Under no flow condition continuous contact possible | |
| Protection class | |
| IP68 (DIN 40050) | |
| Temperature range | |
| Ambient temperature | tamb 70 °C |
| Medium temperature | tm 50 °C |
| Cable connection | |
| Length | 3 m |
Pulse values Opto-OD-Pulser
| Meter sizes | DN 50...125 1 Pulse = ...Liter |
DN 150... 300 1 Pulse = ...Liter |
|
|---|---|---|---|
| WSDK, WPDK, Meistream, Meistream Plus | Opto OD 01 | 1 | 10 |
| WSDK, WPDK, Meistream, Meistream Plus | Opto OD 03 | 10 | 100 |
Application example with Opto-OD-Pulser
Pulse signals for processing in the management systems or other control and regulation functions.
