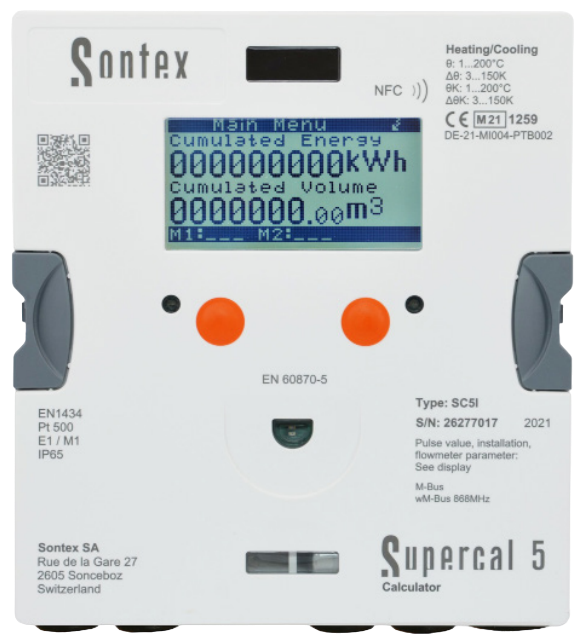

Supercal 5I (CAN)
Product categories
The Supercal 5 I is the next generation of calculators and is the successor to the well-known Supercal 531. This new series is characterized by state-of-the-art multifunctional technologies based on a user-friendly modular concept. It fully meets customer-specific requirements such as simplified system integration, tariff and data logger functions, universal data transmission and connection to control systems. As the design of the Supercal 5 I aims for a high degree of flexibility while keeping future standards in mind, it is ideally suited as a heat or cooling meter as well as a combined heat/cooling meter. Its volume input can be combined with mechanical, magnetic-inductive, ultrasonic or vibrating jet flow sensors. The additional pulse inputs enable the connection of hot or cold water, gas, oil and electricity meters. Thanks to its extensive data communication options and its flexibility in recording and logging dynamic system data, the Supercal 5 I is also suitable for use in district heating networks and industrial plants
Heat / Cooling
Mechanical
Ultrasonic
Magnetic-Inductive
Wired
Impulse,
M-Bus,
BacNET
Smart Building
Your benefits
- Optimization of the housing for easier installation
- NFC technology for simplified and user-friendly configuration via Superprog Android
- Large illuminated dot-matrix display (128 × 64) for improved navigation
- 2 LEDs indicate the status of the calculator in real time
- Fully customizable tariff and data logger functions
- Display menu position customizable through Superprog Windows software
- Extended data memory for comprehensive monitoring
Applications
- High-end device for building management
- All applications in district heating and cooling or building automation
- Optimally suited for glycol and other mixtures
- As a replacement for mechanical impeller heat meters
Options
- Optional power supply modules:
- Lithium-D battery 3.6 V (12+1years)
- Mains 24 VDC / 24VAC (from 12 to 42 VDC / 12 to 36 VAC)
- Mains 230 VAC - 50/60 Hz (from 90 VAC to 240 VAC) - Optional module:
- 2 analog outputs (0..20 mA, 4..20 mA, 0(2)..10 VDC)
- 2 digital inputs (status/pulse)
- 2 digital outputs (status/pulse)
- M-Bus module
- BACnet/Modbus module - Data logger is fully configurable:
- Up to 4 individual historical registers for recording energy, volume, input values
- Average values
- Maximum values
Properties
- Calculator for heat/cooling meters or combined heat/cooling meters
- Battery or mains operation for more flexibility
- Replaceable upper part (MET), the wiring remains untouched
- Modules can be retrofitted or replaced at any time without affecting the approval
- Self-detection of optional modules
- Built-in M-Bus interface in accordance with EN 1434-3
- Optical interface in accordance with IEC 62056-21:2002
- 2- or 4-wire temperature sensor without any pre-configuration
- 2 pulse/state inputs and 2 pulse/state open-drain outputs
- User-friendly menu navigation
Product information
Technical Data
| Temperature measurement | |
|---|---|
| Temperature sensor type | Pt500 according to EN 60751 |
| Cable | 2- or 4-wire |
| Absolute temperature range | –20°C to 200°C |
| Permissible range | 1°C to 200°C |
| Approval range | 3 K to 150 K |
| Response limit | 0.2 K |
| Temperature resolution t | 0.1 K |
| Temperature resolution Δt | 0.01K |
| Environment class A | E1/M1 |
| Temperature measurement cycle | |
|---|---|
| Battery operated | 10s |
| Mains operated | 3 s |
| Ambient temperature | |
|---|---|
| Operation | 5°C to 55°C |
| Storage and transport | –20°C to 70°C (dry storage) |
| Display | |
|---|---|
| Display indication | Illuminated dot matrix 128×64 pixels |
| Display unit: | |
| - Energy - Volume - Additional pulse inputs - Temperature | kWh, MWh, MJ, GJ, kBtu, MBtu, Mcal, Gcal L, m3, gal (US), kgal (US), ft3 Energy or volume °C, °F |
| Protection class | |
|---|---|
| IP Code | IP 65 according to IEC 60529 |
| Pulse inputs and outputs | |
|---|---|
| Frequencie | maximum 200 Hz |
| Input voltage | 0 V to 30 V |
| Output voltage | 0 V to 60 V |
| Interface | |
|---|---|
| Optical interface | according to IEC 62056-21:2002 |
| NFC interface | according to ISO/IEC 14443 Type A |
| M-Bus interface | according to EN 13757-2/3 300 to 9600 baud Galvanic insulation 3.75 kV |
| Compatibility matrix | ||
|---|---|---|
| Function | D Battery | Network Supply |
| LCD display | X | X |
| Backlight LCD display | X | |
| NFC interface | X | X |
| Optical interface | X | X |
| M-Bus interface | X | X |
| Measurement cycle 1) | fast | fast |
| Energy measurement (temperature and volume) | X | X |
| Flow sensor supply | X | X |
| Radio | X | X |
| Communication modules 2) | X | X |
| Service life (years) | 12+1 | 3) |
1) If the SC5 is connected to a Superstatic 440: Slow is between 10 and 30 seconds. Fast is between 3 and 30 seconds.
If the SC5 is connected to another flow sensor: Slow is between 10 and 120 seconds. Fast is between 3 and 120 seconds.
2) M-Bus modules always work. All other communication modules require an external main power supply.
3) In the event that a Supercal 5 with an external mains power supply connected to a Superstatic 440 experiences a power failure. The backup battery can only keep the unit running for up to 3 months.
