Singlejet meter
UNICOe NTEP
Product categories
Water

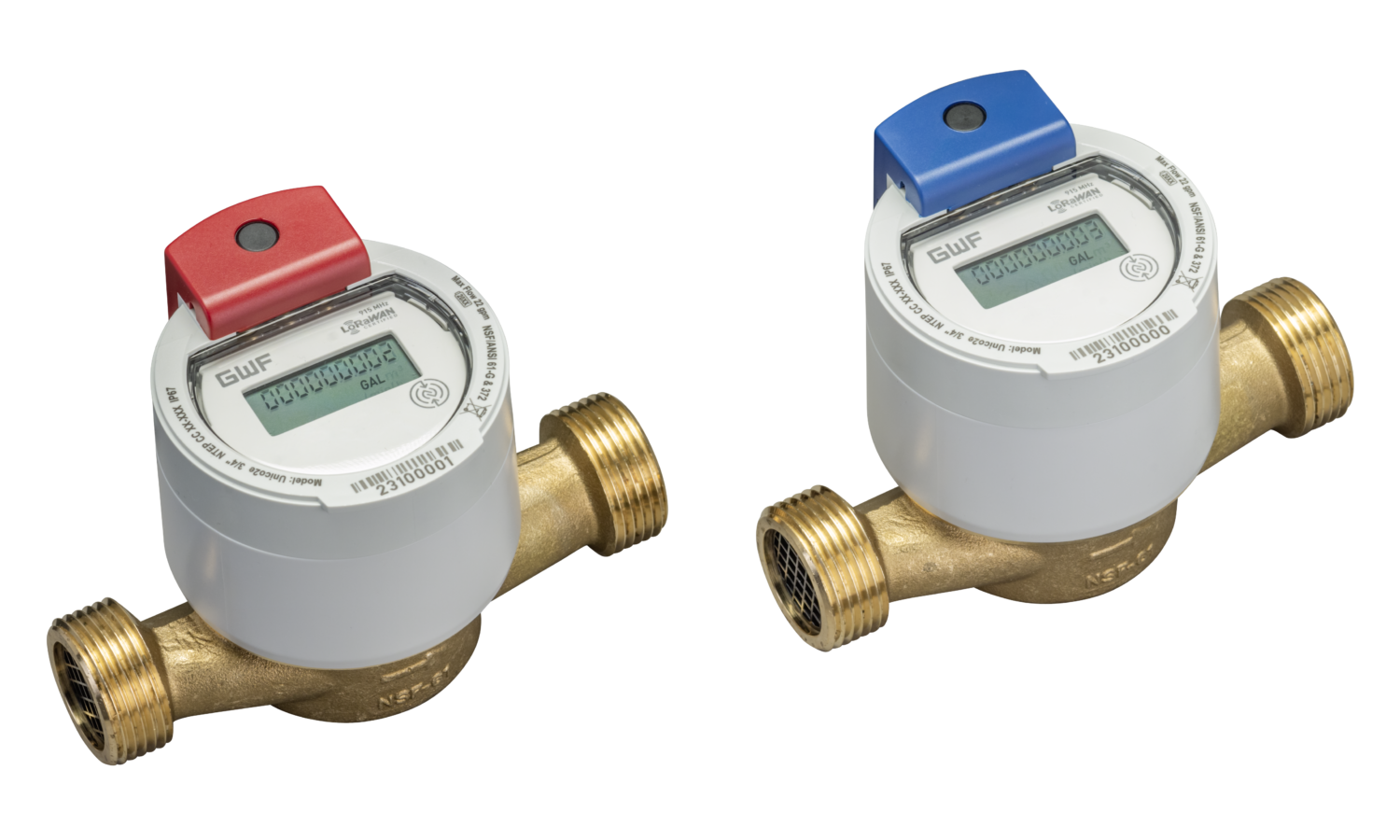

Singlejet consumption meter with electronic register for cold/hot water ¾"
Water
Drinking Water
Mechanical
Wireless
LoRaWAN
Software
Infin.io,
GWF Life
Smart Building
Your benefits
- Utility grade and sustainable technology (robust & high grade wear resistant materials with brass body):
Excellent measuring stability and reliability over meter lifetime and awareness of using a recyclable product - NFC Tap and go:
Simple commissioning process - Plug & Play:
Easy and fast activation in LoRaWAN (no programming required) - Performance driven design:
Range up to 10 miles (line of sight) - Integrated monitoring of connectivity and reconnecting mechanism:
Robust operation with automatic repair options, e.g. due to gateway failures
Applications
- Multi-Family residential and Retail/Commercial applications for consumption monitoring of water and identification of critical events
Properties
- Singlejet dry-dial meter with magnetic coupling
- Inlet strainer
- Horizontal or vertical installation
- Sealed register for tamper resistance
- Typical battery lifetime up to 15 years
- 18 monthly volume key date values
- NTEP Approval CC 19-019A2
- UL2043 plenum rating for products installed in air-handling spaces
- NSF/ANSI 61-G & 372 certified and marked
- Meets AWWA C712 accuracy standards in horizontal and vertical position
- LoRaWAN transmission in license free 915 MHz frequency band
- Data security via AES-128-bit end-to-end encryption over 2 independent security layers
- ADR (adaptive data rate) support gives higher transmission intervals with consistent battery life
- No reverse flow measuring
Product information
Electronic Register - Hybrid - Technology
(1) LCD
(2) Sensors
(3) Communication antenna
(4) NFC interface
- The ERH register is designed to detect the rotations of either two or four-pole magnets. Its electronic filter protects it from external magnetic disturbances, while two sensors filter and digitally convert the magnetic field.
- A highly efficient microcontroller is responsible for determining the rate and direction of flow while also having the capability to detect a range of events and alarms, such as backflow. Furthermore, the LCD display allows for maximum flexibility when viewing the measurement data.
- Lastly, the ERH register is fitted with an energysaving, access-protected NFC interface for parameterization and activation, as well as a wireless communication transceiver for LoRaWAN 915 MHz.
Dimension Diagram
| Dimensions and weights | |||
|---|---|---|---|
| Length without couplings | A | Inch | 5.12 |
| Height | B | Inch | 3.7 |
| Height from pipe centre line | C | Inch | 3.0 |
| Installation depth from pipe centre line | W | Inch | 1.7 |
| Weight without couplings | lbs | 1.5 | |
Technical Data
| Execution | ||
|---|---|---|
| Nominal pipe size | ¾" | |
| Max. operating pressure | psi | 230 |
| Connection thread on meter | Inch | 1" NPSM |
| Permanent flow rate | gpm | 11 |
| Max. flow rate | gpm | 22 |
| Min. flow rate | gpm | 0.5 |
| Starting flow | gpm | app. 0.07 |
| Max. medium temperature | °F | 194 |
| Ambient conditions | |
|---|---|
| Ambient temperature | + 41 °F to + 131 °F |
| Transport & Storage temperature | -4 °F to + 158 °F |
| Register protection class | IP67 |
| Power supply | |
|---|---|
| Lithium/Mangan battery (not replaceable) | 3 V DC |
| Typical battery lifetime (depending on environment and configuration conditions) | Up to 15 years |
| Approval | Unico2e |
|---|---|
| NTEP cold/hot No. CC 19-019A2 | ■ |
| New York Certificate No. 10766 | ■ |
| FCC ID: 2A4F7-ERH | ■ |
| Certifications | Unico2e |
|---|---|
| NSF/ANSI 61-G & 372 D.Hot / incl. cold | ■ |
| LoRa Alliance Certification (1.0.4 spec.) | ■ |
| UL2043 | ■ |

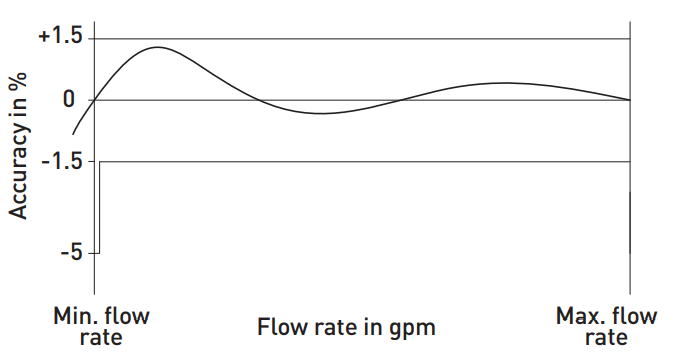

Accuracy chart

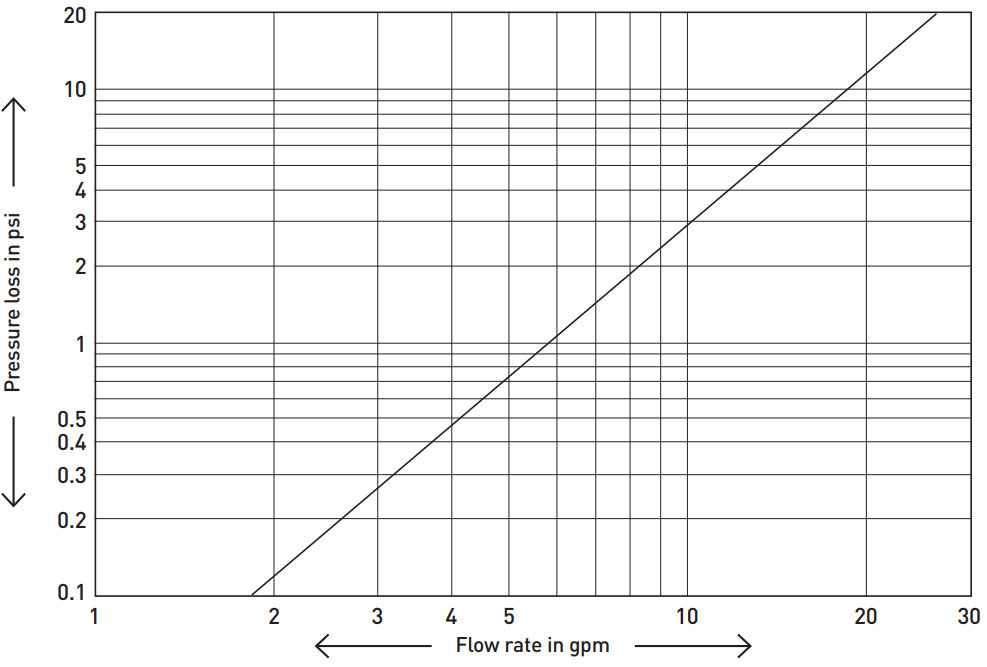

Pressure loss chart
Installation
| Pipeline: | horizontal |  |
| vertical up-flow/ vertical down-flow |  | |
| Meter head: | facing up |  |
| sideways |  |
Display, LoRaWAN specifications, data package
| Display | |
|---|---|
| Volume unit | GAL |
| LCD | 9 digits |
| Volume resolution (> 1500 GAL) | 0.01 GAL |
| High volume resolution (0 - 1500 GAL) | 0.001 GAL |
| Flow rate unit | GAL/min |
| Test bench mode | T |
| Icon for low battery | see image 1) |
| Icon for warning and info codes | see image 2) |
| Radio indicator (On(Off) and LoRaWAN connectivity status | see image 3) |
| LoRaWAN specifications | |
|---|---|
| Regional parameters (Frequency band) | US902-928 MHz ISM Band |
| Transfer protocol (payload) | GWF specific |
| Radiated power | max. 20 dBm (100 mW) |
| Class | A |
| ADR (Adaptive data rate) | Yes |
| Activation type | OTAA |
| Information data package | |
|---|---|
| DevEUI | 70B3D538700000AB |
| Meter manufacturer | GWF |
| Medium | Water |
| Meter S/N | 23132356 |
| Absolute meter reading (down to 15 min values) | 359.76 GAL |
| Remaining battery life | Semester |
| Alarms | Meter alarms, Low Battery, Burst pipe, Potential leak, Backflow, No Usage, Max. flow rate exceeded, Min./Max. temperature |
