Combined meter
WPV-MS
Product categories
Water
Combined meter for cold water up to 50 °C
Water
Drinking Water
Mechanical
Wired
Impulse,
M-Bus
Smart City
Your benefits
- Precise sizing of the water meter according to the flow rates occurring in the system:
Improved efficiency
Applications
- Measurement of high, strongly fluctuating flow rates, e.g.:
• Commercial and industrial installations
• School and sports complexes
• Apartment blocks
• Hotels - Specified pipe sizing for fire-fighting water demand
Options
- Flood-proof GWFcoder® main and secondary registers (IP68) with IEC or M-Bus interface, 5 m cable and one interface each for an HRI pulse transmitter
- High-resolution pulse transmitter HRI-Mei
Dokumentation: HRI-Mei - EPe10222 - High-resolution pulse transmitter Opto OD
Dokumentation: Opto-OD-Impulsgeber - EPe10205
Downloads
Properties
- Achievement of the largest known measuring range with defined low error limits
- Horizontal installation position
- No inlet straight pipe section required
- Maximum operating pressure PN 16 bar
- Temperature up to 50 °C
- Hydrodynamic vane balancing of the main meter
- Optimal corrosion protection by powder coating
- Starting flow approx. 8 l/h
- Spring-loaded changeover valve with low pressure loss
- Minimum pressure of 0.5 bar upstream of the meter required
- SVGW certification
Conformity according to the European Measuring Instruments Directive (MID)- Flood-proof pulse transmitter registers for main and secondary meter (IP68), each with one slot for an Opto-OD pulse transmitter and one interface for an HRI-Mei pulse transmitter
Product information
Installation positions
| Pipeline: | horizontal |  |
| Meter head | upwards |  |
Dimension diagram
Technical Data
| Nominal diameter | DN | mm | 150 | |||
| Secondary meter nominal diameter | DN | mm | 40 | |||
| Nominal pressure | PN | bar | 16 | |||
| Permanent flow rate | Q3 | m3/h | 400 | |||
| Maximum flow rate (1x24h) | Q4 | m3/h | 600 | |||
| Transitional flow rate ±2% | Q2 | m3/h | 0,15 | |||
| Minimum flow rate +/- 5% | Q1 | m3/h | 0,035 | |||
| Changeover at increasing flow rate | m3/h | 8,3 | ||||
| Changeover at decreasing flow rate | m3/h | 4,7 | ||||
| Temperature | max.°C | 50 | ||||
| Dimensions and weights | |||
|---|---|---|---|
| Length | L | mm | 500 |
| Hight | H | mm | 177 |
| Hight | h | mm | 135 |
| Measuring insert removal height | g | mm | 356 |
| Width | B | mm | 275 |
| Width | b | mm | 145 |
| Meter weight | approx. kg | 60 | |
| MID approval data | |||
|---|---|---|---|
| Permanent flow rate | Q3 | m3/h | 250 |
| Temperature | max.°C | 30 | |
| Measuring range | R2500 | ||
Materials
| Housing primary meter | Grey cast iron |
| Housing secondary meter | Brass |
| Measuring insert primary and secondary meter | Plastic |
| Spring-loaded changeover valve: | Plastic / stainless steel |
Measuring error curve

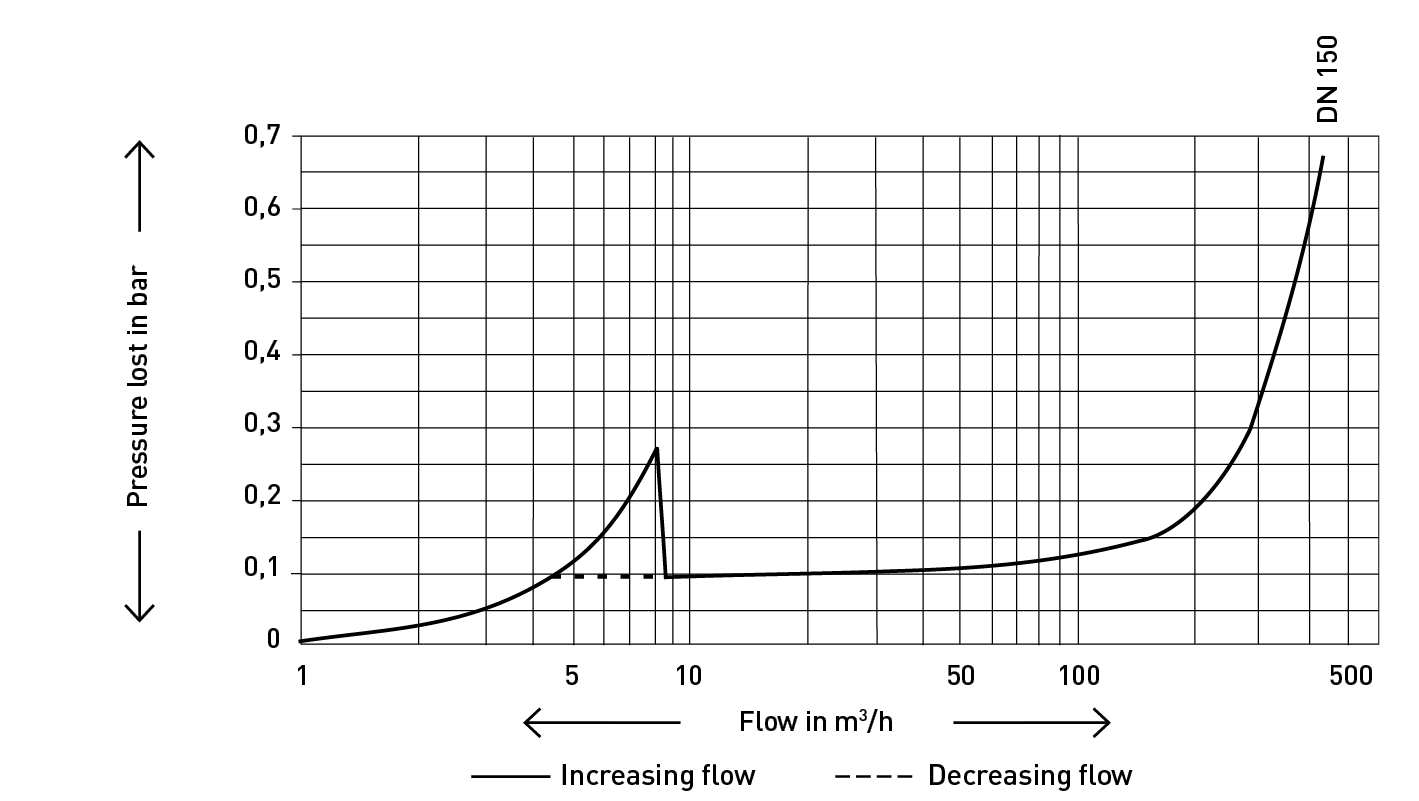

Druckverlustkurve
Comission notes
During commissioning, the pipes must be filled with water slowly (slow venting must be ensured).
Pulse value HRI-Mei pulse transmitter
| Meter size | DN 150 Impuls = ...liters |
|---|---|
| WPV-MS primary meter | 100 1000 |
| WPV-MS secondary meter | 10 100 |
Pulse value of the Opto-OD pulse transmitter
| Meter size | DN 150 1 Impuls = ...liters | |
|---|---|---|
| WPV-MS primary meter | Opto OD 01 Opto OD 03 | 10 100 |
| WPV-MS secondary meter | Opto OD 01 Opto OD 03 | 1 10 |
Order information
| Flow direction | Position of the secondary meter... |
|---|---|
| left to right | ...in flow direction right |
| right to left | ...in flow direction left |
Register dials
