Remote meter readout
Interface RS232-SCR(IEC)
Product categories
Remote meter readout
System technology
Your benefits
- Interface converter between GWFcoder® meters and RS232 communication devices:
Easy integration into remote meter reading systems - Transparent mode of operation:
Unchanged transfer of read-out data to the communication device - Clearly marked connection terminals:
Easy on-site installation
Applications
- The interface is used for the addressed readout of water and gas meters with GWFcoder® registers via an RS232 connection
Properties
- Compatible with RS232 standard interface
- Addressed readout in accordance with IEC 62056-21 mode A
- Data transfer up to max. 150 m between GWFcoder® meter and interface
- Polarity independent connection of GWFcoder® meter to the interface
- DIN rail mounting
- The interface can be used to connect the GWFcoder® meter with SCR(IEC) interface to a communication device with an RS232 interface. The interface serves as a converter between the meter and communication device.
- The interface is mounted near to the communication device.
In combination with remote meter readout, it is possible to read out the register readings directly from a control centre via a modem. The remote meter readout software must support the GWFcoder® data set.
Product information
Technical Data
| Data transfer | |
|---|---|
| GWFcoder® meter version 5.x | 300 baud 7E1 mode A |
| GWFcoder® meter version 4.x | 300 baud 7E2 mode A |
The interface functions transparently and does not save data – readout data is transferred to the communication device without being modified.
| Installation | |
|---|---|
| The interface should be installed directly at the communication device. | |
| Max. cable length | |
|---|---|
| SCR connection cable | 150 m |
| RS232 connection cable | 2 m |
| Type of cable | |
|---|---|
| SCR connection cable | U72 (1x4x0,8) |
| Dimensions and weight | |
|---|---|
| Dimensions | 25x78x47 mm |
| Weight | app. 50 g |
| Application area | |
|---|---|
| Temperature | -10 to +60 °C |
| Protection class | IP40 |
| Interfaces | |
|---|---|
| RS232 standard, EIA-compatible | |
| Inductive in accordance with SCR / Protocol IEC 62056-21 | |
| Connection and signal transfer | ||
|---|---|---|
| RS232 | Interface | |
| 2 | RX | RS232 – receive path |
| 3 | TX | RS232 – transmit path |
| 4 | VCC | 5 –12 V DC / 10 mA Communication devices with DTR signal power › 5 V DC can be connected directly to VCC. |
| 5 | GND | Ground |
| Ea | GWFcoder® register (polarity independent) | |

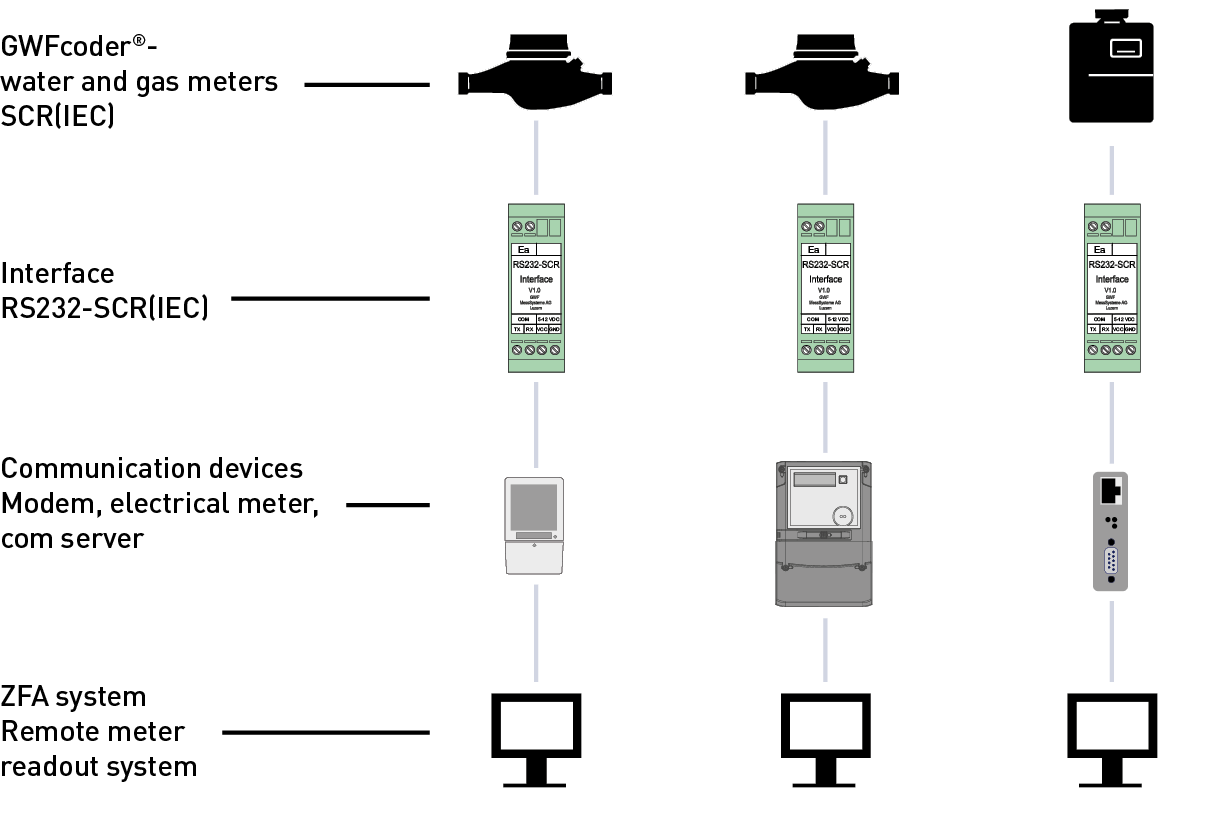

Components
