Singlejet meter
UNICOcoder ® MP with RCM®-H200 compact - NTEP
Product categories
Water

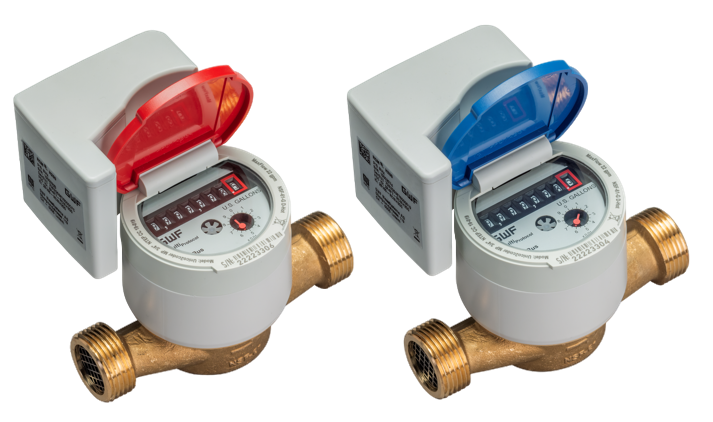

Singlejet consumption meter for cold/hot water with wireless LoRaWANTM 3/4“
Water
Mechanical
Wireless
wM-Bus,
LoRaWAN
Smart Building
Your benefits
- Utility grade and sustainable technology (robust & high grade wear resistant materials with brass body):
Excellent measuring stability and reliability over meter lifetime and awareness - NFC Tap and go:
Simple commissioning process - Plug & Play:
Easy and fast activation in LoRaWAN (no programming required) - Performance driven design:
Range up to 25 miles (line of sight) - Integrated monitoring of connectivity and reconnecting mechanism:
Robust operation with automatic repair options, e.g. due to gateway failures
Applications
- Manufactured Homes for consumption monitoring of water and identification of critical events
Downloads
Properties
- Singlejet dry-dial meter with magnetic coupling
- Inlet strainer
- Horizontal or vertical installation
- Sealed register for tamper resistance
- NTEP Approval CC 19-019A2
- NSF/ANSI 61-G & 372 certified and marked
- Meets AWWA C712 accuracy standards in horizontal and vertical position
- Protection class IP68
- LoRaWAN transmission in license free 915 MHz frequency band
- Data security via AES-128-bit end-to-end encryption over 2 independent security layers
- Typical battery lifetime up to 15 years
- ADR (adaptive date rate) support gives higher transmission intervals with consistent battery life
Product information
Technical Data
| Nominal pipe size | 3/4“ | ||
| Max. operating pressure | psi | 230 | |
| Connection thread on meter | Inch | 1“ NPSM | |
| Permanent flow rate | gpm | 11 | |
| Max. flow rate | gpm | 22 | |
| Min. flow rate | gpm | 0.5 | |
| Max. operating temperature | °F | 194 | |
| Dimensions and weights | |||
|---|---|---|---|
| Length without couplings | A | inch | 5.12 |
| Height1) | B | inch | 5.2 |
| Height from pipe centre line1) | C | inch | 4.4 |
| Installation depth from pipe centre line | W | inch | 2.5 |
| Weight without couplings | lbs | 1.79 | |
1) The dimension B and C increase by 20mm if lid is open
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | +41 °F to +131 °F | |
| Transport & Storage temperature | +5 °F to +149 °F | |
| Register protection class | IP68 | |
| Power supply | ||
|---|---|---|
| Lithium battery (not replaceable) | 3 V DC | |
| Typical battery lifetime (depending on environment and configuration conditions) | Up to 15 years | |
| Approval | Uncico2coder MP | |
|---|---|---|
| NTEP cold/hot No. CC 19-019A2 | ■ | |
| New York Certificate No. 10766 | ■ | |
| UL2043 | ■ | |
| Certifications | Uncico2coder MP | |
|---|---|---|
| NSF/ANSI 61-G & 372 D-Hot / incl. cold | ■ | |
| LoRa Alliance Certification (1.0.4 spec.) | ■ | |
Installation
| Pipeline | horizontal |  |
| vertical up-flow |  | |
| vertical down-flow | | |
| Meter head | facing up |  |
| sideways |  |

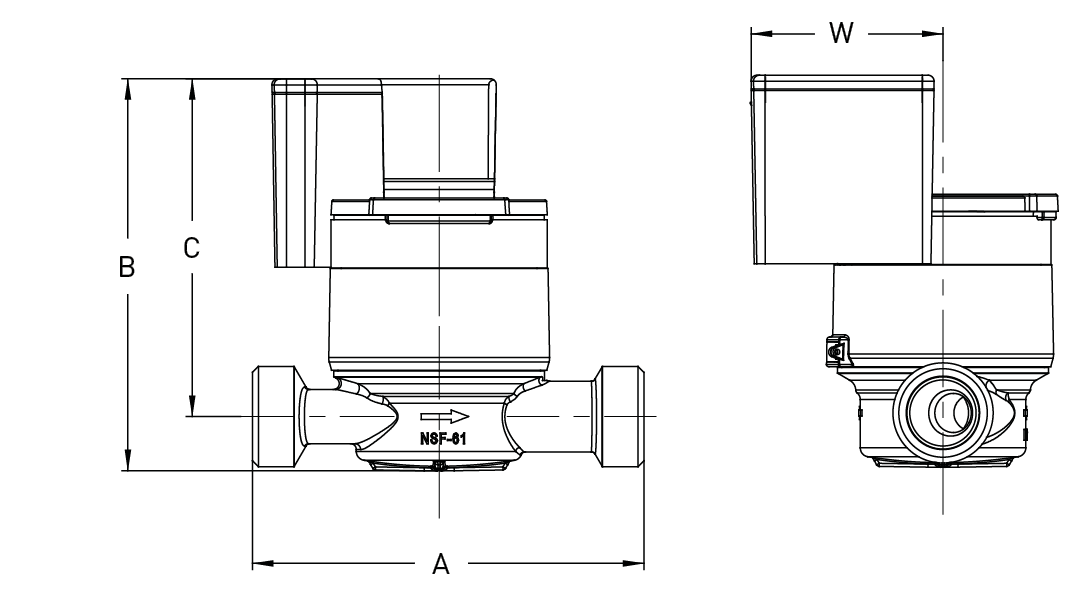

Dimension Diagram

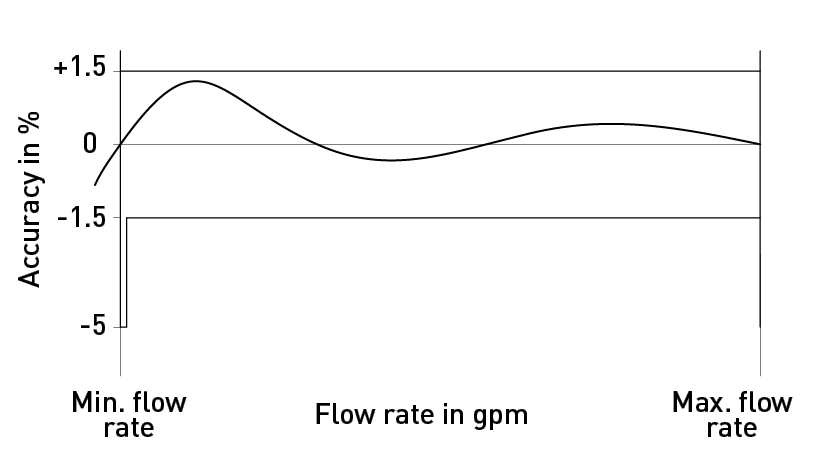

Accuracy chart

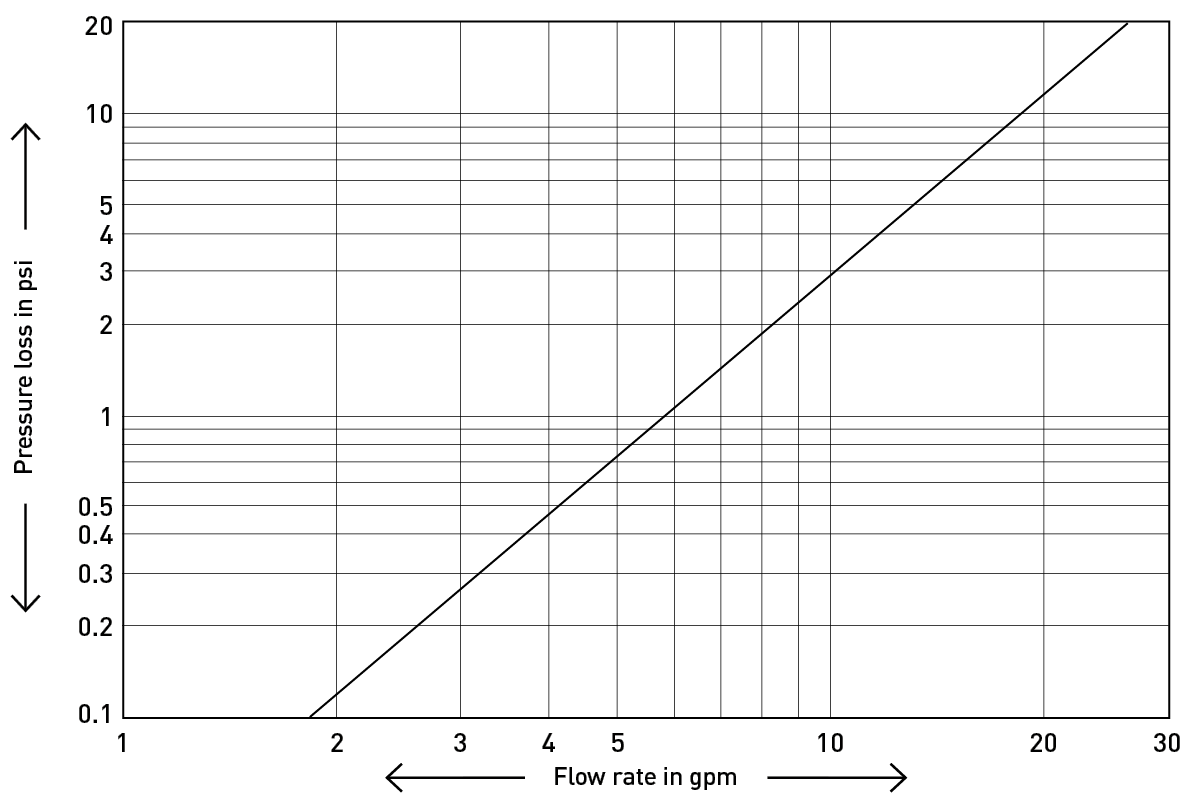

Pressure loss chart
LoRaWAN specifications & Information data package
| LoRaWAN specifications | |
|---|---|
| Regional parameters (Frequency band) | US902-928 MHz ISM Band (902 - 928 MHz) |
| Transfer protocol (payload) | GWF specific |
| Radiated power | max. 20 dBm (100 mW) |
| Class | A |
| ADR (Adaptive data rate) | Yes |
| Activation type | OTAA |
| FC Approval | FCC ID: 28165-RCMH200 |
| Information data package | |
|---|---|
| DevEUI | 70B3D538700000AB |
| Meter manufacturer1) | GWF |
| Medium1) | Water |
| Meter S/N1) | 23123456 |
| Absolute meter reading (down to 15 min values) | 35.9 US gallons |
| Remaining battery life | Semester |
| Alarms | Battery, LoRaWAN link error, Continuous flow / leak, Backflow, Burst pipe, No Usage |
| Status1 | Manipulation |
1) This data is read directly from the GWFcoder® MP register
