Single-jet water meter
UNIVERSAL EV
Product categories
Water
Surface-mounted water meter for hot water up to 90 °C
Water
Drinking Water
Mechanical
Wired
Impulse,
M-Bus
Wireless
Smart Building
Your benefits
- Compact design:
Minimal installation space required on site - Easy installation:
Cost savings per metering point - Prepared for communication module:
Retrofit capability ensured
Applications
- Water consumption measurement in building services
- Water meter for local or remote reading
- Available for nominal flow rate Q3 2.5 m3/h or Q3 4 m3/h
Options
- Communication module with 12-year battery and 1 m cable length
- Pulse output
- M-Bus according to EN 13757-2/-3
- EquaScan-wMIU radio according to EN 13757-4
Downloads
Properties
- Single-jet impeller meter, dry-running type, magnetic transmission
- Available with Q3 2.5 or Q3 4
- No inlet or outlet straight pipe section required
- Horizontal or vertical installation
- Register can be rotated on site to the desired display position
- Maximum operating pressure PN 16 bar
- Temperature 30 °C or 90 °C
Conformity according to the European Measuring Instruments Directive (MID)
Product information
Installation positions
| Pipeline: | horizontal |  |
| vertical |  | |
| Head of meter | upwards |  |
| to the side |  |
Technical Data
| Nominal diameter | DN | mm | 15 | 20 |
| Nominal pressure | PN | bar | 16 | 16 |
| Meter connection thread | G...A | Zoll | 3⁄4 | 1 |
| Union connection thread | R... | Zoll | 1⁄2 | 3⁄4 |
| Permanent flow rate | Q3 | m3/h | 2,5 | 4 |
| Maximum flow rate | Q4 | m3/h | 3,125 | 5 |
| Transitional flow rate ±2% | Q2 | l/h | 100 | 160 |
| Minimum flow rate +/- 5% | Q1 | l/h | 62,5 | 100 |
| Temperature | max.°C | 90 | 90 | |
| Standard measuring range | R40 | R40 | ||
| Dimensions and weights | ||||
|---|---|---|---|---|
| Lenght | A | mm | 110 | 130 |
| length without couplings | mm | 184 | 222 | |
| Width | B | mm | 72 | 72 |
| Height | C1 | mm | 71 | 76 |
| Height from center of pipe | D | mm | 57 | 62 |
| Weight without couplings | approx. g | 485 | 682 | |
Dimension Diagram

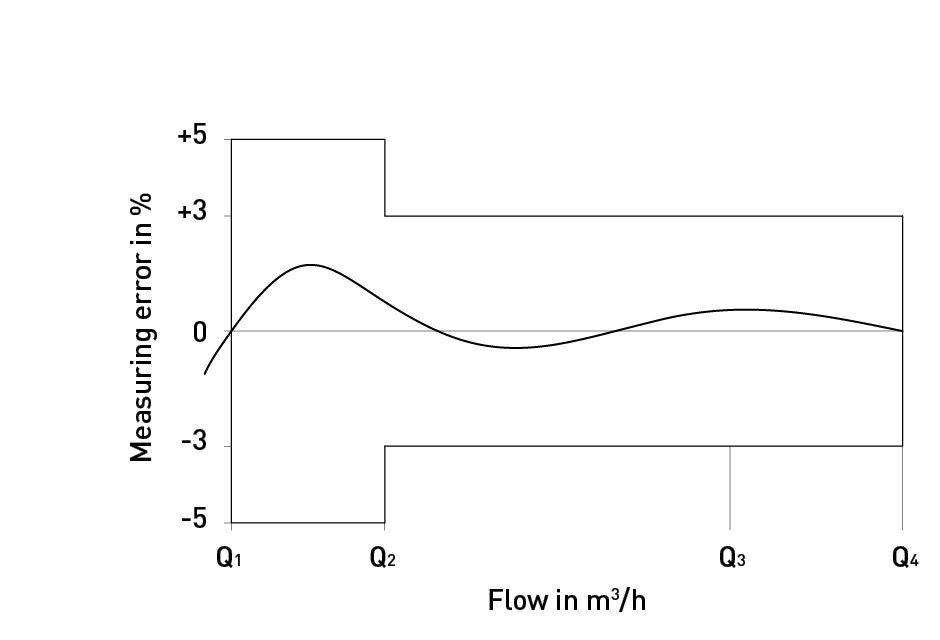

Measuring error curve

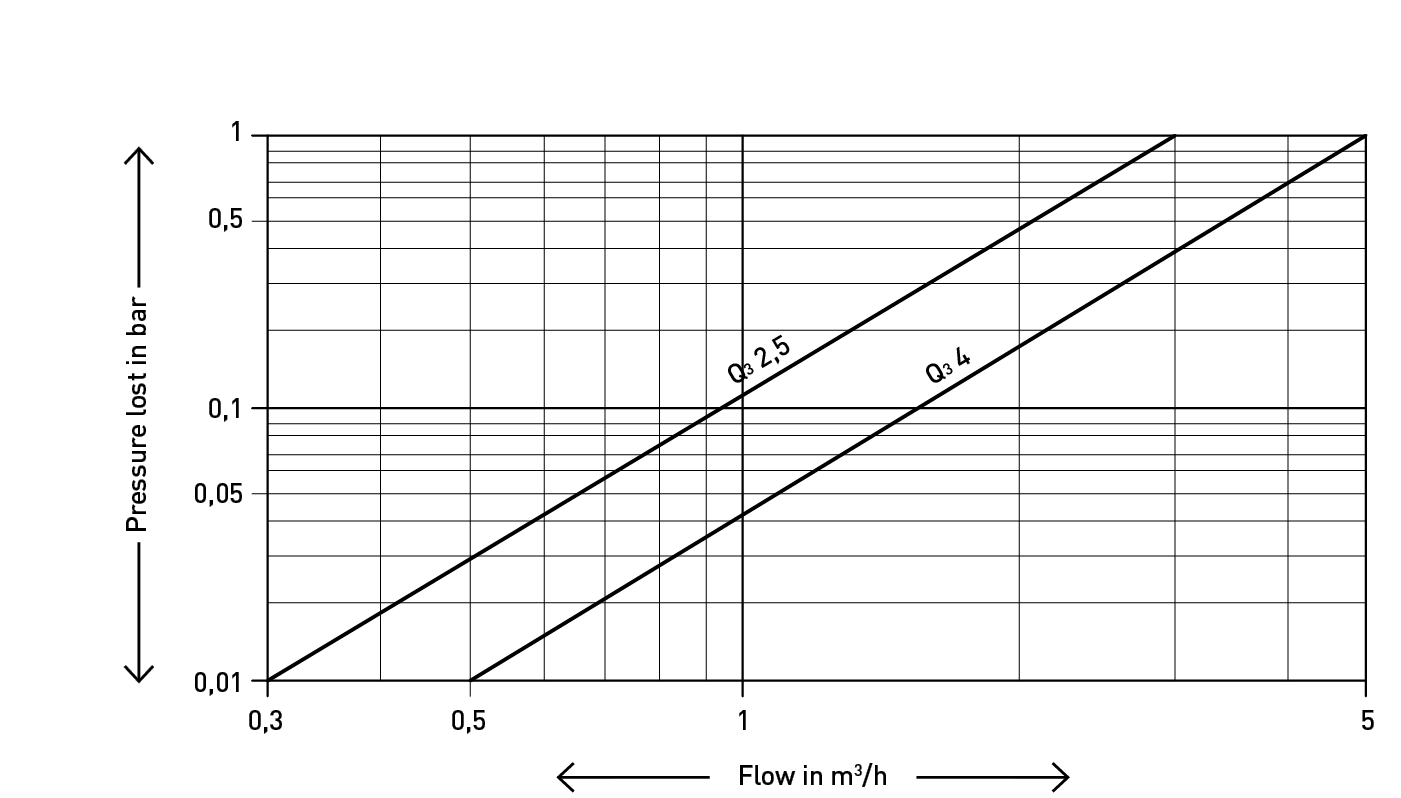

Druckverlustkurve
