Measuring capsule counter
UPZ +m MK
Kategorie produktowe
Woda
Capsule counter system MK DN 15, 20
Woda
Woda pitna
Mechniczne
Smart Building
Korzyści
- Compact design:
Minimal installation space required on site - Easy installation and replacement:
Cost savings per metering point - Prepared for communication module:
Retrofit capability ensured
Zastosowanie
- Water consumption measurement in building services
- Available for nominal flow rate Q3 2,5m3/h or Q3 4 m3/h
- Water meter for local or remote reading
- Pre-wall, surface-mounted or flush-mounted installation
Opcje
- Communication module with 12-year battery and 1 m cable length
- Pulse output
- M-Bus according to EN 13757-2/-3
- EquaScan-wMIU radio according to EN 13757-4
Pliki do pobrania
Cechy
- Single-jet capsule meter, dry-running type
- Available with Q3 2,5 and Q3 4
- Installation
- Q3 2.5: No inlet or outlet straight pipe section required
- Q3 4: Inlet straight pipe section 5 × DN required; no outlet straight pipe section required - Universal installation position
- Register can be rotated on site to the desired display position
- Maximum operating pressure PN 10 bar
- Temperature 0.1 °C – 90 °C
- Optimal integration into sanitary fitting systems in modern residential construction
- Easy flushing of the pipe before installation of the measuring capsule using a blind plate
- Rosettes round and chrome-plated
Conformity according to the European Measuring Instruments Directive (MID)
Product information
- Various accessories available
Dimension Diagram
Technical Data
| Nominal diameter | DN | mm | 15 | 20 |
| Nominal pressure | PN | bar | 10 | 10 |
| Permanent flow rate | Q3 | m3/h | 2,5 | 4 |
| Maximum flow rate | Q4 | m3/h | 3,125 | 5 |
| Transitional flow rate ±2% | Q2 | l/h | 100 | 160 |
| Minimum flow rate +/- 5% | Q1 | l/h | 63 | 100 |
| Pressure loss at Q3 | bar | 0,62 | 0,62 | |
| Temperature | max.°C | 30/90 | 30/90 | |
| Measuring range | R40 | R40 |
1) Cold water range ±2%
| Dimensions Connections A | Length (B) | Wall distance to pipe center (C) | |
|---|---|---|---|
| ½” external thread | 15mm Löt | 110 mm | 15 mm |
| ¾” external thread | 18mm Löt 22mm Löt | 110 mm 110 mm | 15 mm 15 mm |
| ½” internal thread | 110 mm | 15 mm | |
| ¾” internal thread | 110 mm | 15 mm | |
| 1” external thread 1) | 130 mm | 20 mm | |
1) Only measuring capsule Q3 4 can be used!
Installation kit
- Single-pipe connection piece (EAT)
- Blind plate for flushing the pipeline (PN 10/16)
- O-ring seal
- Head ring
- Installation protection cap (also serves as installation wrench and template for wall opening)
- Installation instructions
Measuring insert
- Measuring capsule with 8-digit roller register, rotatable 360°, integrated dirt strainer, with lifting ring
- O-ring seal
- Plastic cylinder (chrome-plated)
- Plastic rosette (chrome-plated)
- Plastic seal
- Installation instructions
Installation positions
| Pipeline: | horizontal |  |
| vertical |  | |
| Head of meter | upwards |  |
| to the side |  |
Installation note
UPZ capsule meters are splash-proof.
Attention: The use of these meters in areas with continuously high condensation humidity (e.g. direct shower areas or underground pits) should be avoided, as moisture may diffuse through the plastic register cover over time and impair readability.
Install in a frost-protected location.

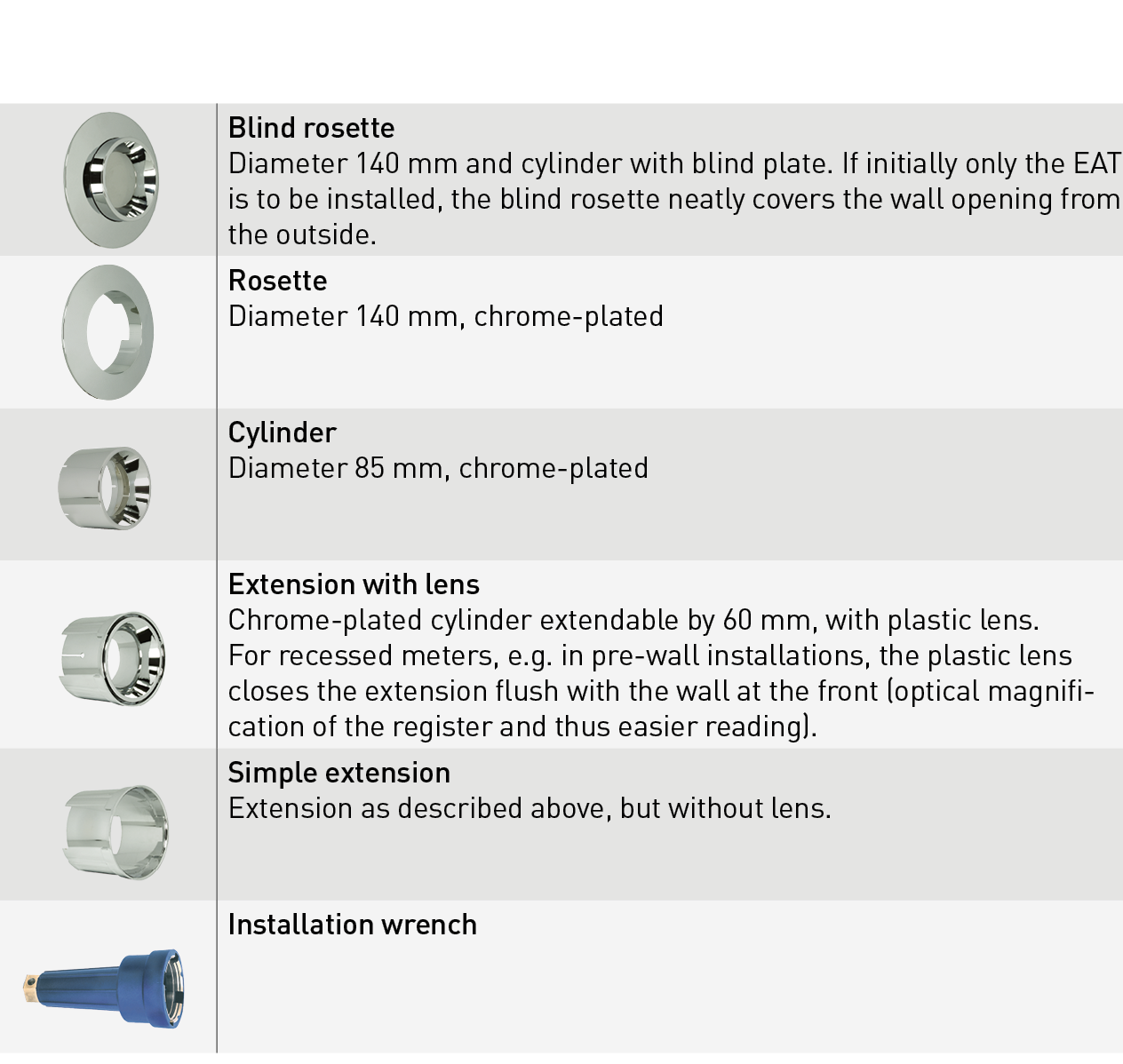

Accessories
