Measuring capsule counter
UPZ +m KOAX
Kategorie produktowe
Woda
Woda
Woda pitna
Mechniczne
Smart Building
Korzyści
- Compact design:
Requires little installation space on site - Easy installation and replacement:
Cost savings per measuring point - Prepared for communication module:
Retrofitting guaranteed
Zastosowanie
- Water consumption measurement in building services engineering
- Available for nominal flow rate Q3 2.5 m3/h
- Water meter for local or remote reading
- Also suitable for KOAX 2" shut-off sections
- Auch passend in Absperrstrecken System KOAX 2”
Opcje
- Communication Module (TMP-F M-Bus) with power supply and 1 m cable length
- Pulse output, S0 compliant
- M-Bus according to EN 13757-2/-3, OMS compliant - Water Meter / Valve Block, Flush-Mounted (UP-Fix), Coaxial
Dokumentation: UP-Fix KOAX 20-1 und 20-2 - EPe20601
Pliki do pobrania
Cechy
- Multi-jet capsule meter, dry runner MOF
- Q3 2.5 with 2" connection thread
- No inlet or outlet section required
- Universal installation position
- The counter can be rotated to the desired display position at the installation site
- Maximum operating pressure PN 10 bar
- Temperature 0.1°C - 90°C
- Optimal integration into the sanitary fittings range in modern residential construction
- Easy flushing of the pipe before installing the measuring capsule with the aid of a blind flange
- Round, chrome-plated rosettes
Compliance with the European Measuring Instruments Directive (MID)- Also available in lead-free version.
Product information
Dimension Diagram
Technical Data
| Installation Position | horizontal | ||
|---|---|---|---|
| Nominal diameter | DN | mm | 15 |
| Nominal pressure | PN | bar | 10 |
| Permanent flow rate | Q3 | m3/h | 2,5 |
| Maximal flow rate | Q4 | m3/h | 3,125 |
| Transitional flow rate ±3%1) | Q2 | l/h | 100 |
| Minimum flow rate ±5% | Q1 | l/h | 63 |
| Pressure loss at Q3 | bar | 0,45 | |
| Temperature | max.°C | 30/90 | |
| Measuring range | R40 |
1)Kaltwasserbereich ±2%
| Connections | Length | Distance to wall from center of pipe (H) |
|---|---|---|
| ½” internal thread | 110 mm | 17,5 mm |
| ¾” internal thread | 110 mm | 17,5 mm |
| ¾” external thread | 110 mm | 15 mm |
Mountik kit
- Single-Pipe Connection Unit (EAT)
- Blind Flush Cap for Line Flushing (PN 10/16)
- Flat Gaskets
- Installation Protection Cap (also serves as installation wrench and template for wall recess)
- Installation Instructions
Measuring insert
- Measuring capsule with 8-digit roller counter, rotatable through 360°, integrated dirt filter
- Flat gasket
- Plastic cylinder (chrome-plated)
- Plastic rosette (chrome-plated)
- Wire seal
- Installation instructions
Installation positions
| Pipeline: | horizontal |  |
| vertical |  | |
| Head of meter: | upwards |  |
| to the side |  |
Installation note
UPZ KOAX capsule meters are splash-proof. Caution: These meters should not be used in areas with constantly high levels of condensation (e.g., directly in shower areas or earth shafts), as moisture can diffuse through the plastic meter cover over time and impair readability. Install in a frost-proof location!

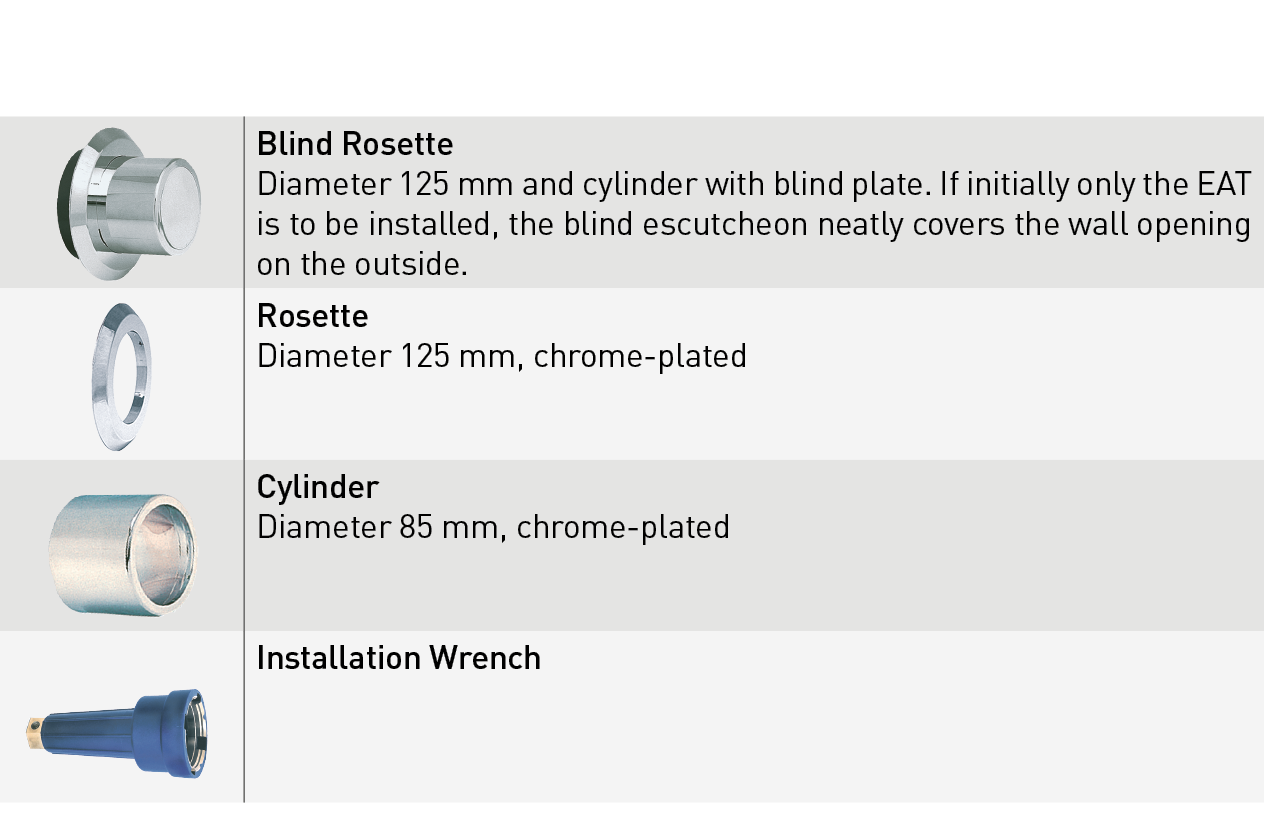

Accessories
