sonico® EDGE
4-20 mA Module
Product categories
Water
NFC-Communication Module
Water
Drinking Water
Ultrasonic
Smart City
Smart Industry
Your benefits
- High-resolution:
4-20 mA current output volume flow (16 Bit) configurable - Configurable volume:
20 mA configurable over meter IR-interface and sonico LIFE app - Uni- or bidirectional current output modes:
12 mA separation or absolute values for forward and reverse current output - High flexibility:
Easy and fast on-site installation with auto NFC interface-detection - Water proof design:
Sealed housing (IP68) - Plug & Play:
Easy and fast on-site installation with auto NFC interface-detection
Applications
- SCADA system
- Industrial control application
- Building management system
- Data logging in combination with various data loggers
- Installation in harsh and flooded environment
Links
Sonico EDGE flow meterProperties
- Three output modes for uni- or bidrectional flow measurements
- Snap-in NFC module slots – no connectors or cables needed
- Can be factory fitted or retrofitted at installation site without breaking metrological
- Compatible with all versions of sonico® meters
- Infrared configuration interface – Data security via AES-128-bit end-to-end encryption
conformity
Modes
Dimensions (mm)
Technical data
| Specifications | |
|---|---|
| Compliance with standard | EN 300 220 |
| Approval | |
| Protection class | IP68 |
| Current output | 4…20 mA, passive |
| Cable length/ supplied | 3 m including cable joint for cable extension |
| Maximum cable length | 500 m with same cable as provided |
| Weight | approx. 243 g |
| Power supply | |
|---|---|
| Voltage | No battery included. Min: 10 V Typical: 24 V Max: 26 V |
| Current | <3 mA |
| Conditions | |
|---|---|
| Operational and storage temperature | -25 to +70 °C |
| Relative humidity | 0 to 100 % (IP68) |

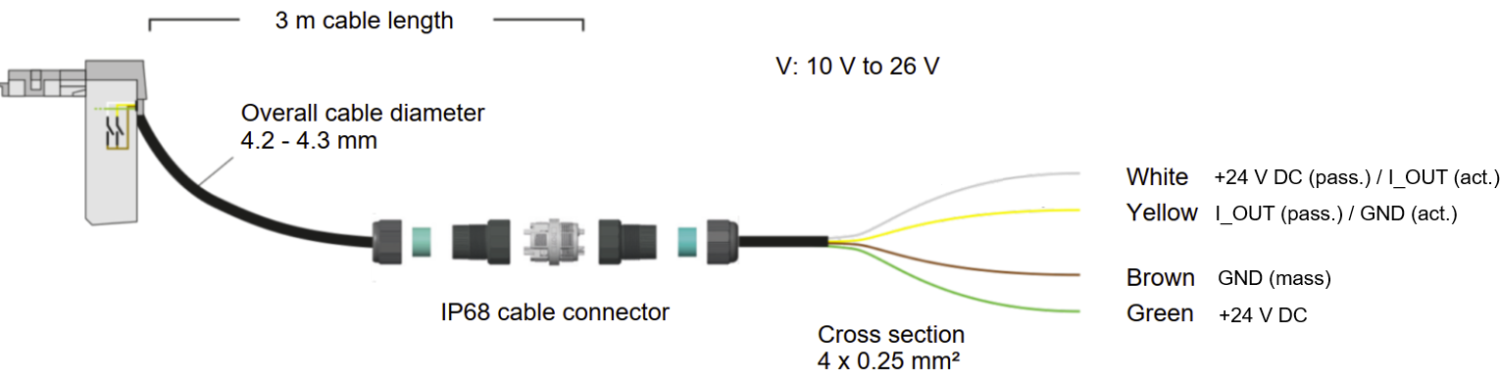

4-20 mA module cable connection
Electrical Scheme
1. Sonico® 4-20 mA module and meter connection schema using a passive read-out instrument.
2. Sonico® 4-20 mA module and meter connection schema using an active read-out instrument.
